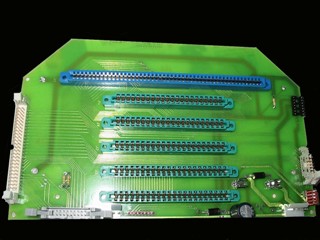

Backplane |
| SKU# BKB |
Kit SKU# BKB-K |
| Description:
|
| Shipping Weight:
xx Pounds, xx Ounces |
| Assembled Price: $
60.00 |
Kit Price: $
44.00 |
|
Individual Parts
|
DRAWING NUMBER |
QTY |
DESCRIPTION |
Unit Cost |
Total Cost |
|
4001-05001 |
|
1 |
PC Card Mother Board |
$ 25.00 |
$ 25.00 |
|
2000-34005 |
|
1 |
Connector, Edge Card, Dual 50/100 Pin |
$ 4.00 |
$ 4.00 |
|
2000-34006 |
|
5 |
Connector Edge Card Dual 22-24 |
$ 2.00 |
$ 2.00 |
|
2000-34009 |
|
1 |
Connector, 50 Pin Locking Header |
$ 2.56 |
$ 2.56 |
|
2000-34010 |
|
1 |
Connector, 20 Pin Locking Header |
$ 0.74 |
$ 0.74 |
|
2000-34011 |
|
1 |
Connector, 10 Pin Locking Header |
$ 0.65 |
$ 0.65 |
|
2000-34012 |
|
1 |
Connector, 8 Pin Wafer, Polarized |
$ 0.50 |
$ 0.50 |
|
2000-34013 |
|
1 |
Connector, 5 Pin Wafer, Locking |
$ 0.25 |
$ 0.25 |
|
2000-34014 |
|
1 |
Connector, 4 Pin Wafer, Locking |
$ 0.25 |
$ 0.25 |
|
2000-34015 |
|
1 |
Connector, 2 Pin Wafer, Locking |
$ 0.06 |
$ 0.06 |
|
2000-34003 |
|
1 |
Socket, 14 Pin Dip |
$ 0.25 |
$ 0.25 |
|
2000-58000 |
|
2 |
Diode, IN5402 |
$ 0.10 |
$ 0.20 |
|
2000-13018 |
|
2 |
Fuse Clip |
$ 0.05 |
$ 0.10 |
|
2000-49000 |
|
1 |
Fuse 1 Amp |
$ 0.10 |
$ 0.10 |
|
2000-22004 |
|
1 |
Capacitor, 1000 F |
$ 1.00 |
$ 1.00 |
|
2000-43002 |
|
1 |
Resistor, 1K, 1/4 W 5% |
$ 0.01 |
$ 0.01 |
|
2000-43008 |
|
2 |
Resistor, 430K, 1/4 W 5% |
$ 0.01 |
$ 0.01 |
|
|
|
|
|
Unassembled kits consists of a bare PCB, and all the components
plus instructions to construct a complete board. Soldering
skills ARE REQUIRED. We do offer help in troubleshooting
should your completed board not function but no refunds are offered
and you will be charged for burned / damaged components.
|
