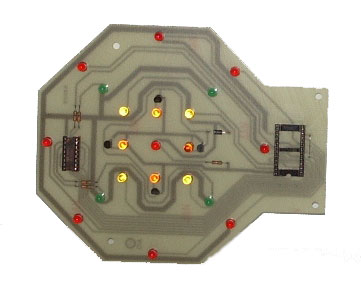

LED BOARD



LED Board
SKU# LEB Kit SKU# LEB-K
Description:



Shipping Weight:  xx Pounds, xx Ounces
Assembled Price:  $45.00 Kit Price: $30.00

Individual Parts

Part # QTY DESCRIPTION  Unit Cost   Total Cost
3001-05000 1 PC Board, LED  $      20.00  $     20.00
2000-34002 1 Socket, 16 Pin DIP  $        0.15  $       0.15
2000-70004 4 LED, Green  $        0.20  $       0.80
2000-70003 8 LED Red   $        0.15  $       1.20
2000-70000  4 LED, Clear   $        0.20  $       0.80
2000-70002 1 LED, Orange  $        0.20  $       0.20
2000-70001 4 LED, Yellow  $        0.20  $       0.80
2000-67020 4 IC, FCC 92  $        0.35  $       1.40
2000-67005 1 IC, MC1413  $        0.65  $       0.65
2000-43001 5 Resistor, 330 Ohm 4W 5%  $        0.01  $       0.05
2000-58003 1 Diode, IN4001  $        0.03  $       0.03
2000-35001 1 Cable, Molded, 20 to 24 Conductor  $        5.00  $       5.00













Unassembled kits consists of a bare PCB, and all the components plus instructions to construct a complete board.  Soldering skills ARE REQUIRED.  We do offer help in troubleshooting should your completed board not function but no refunds are offered and you will be charged for burned / damaged components.
